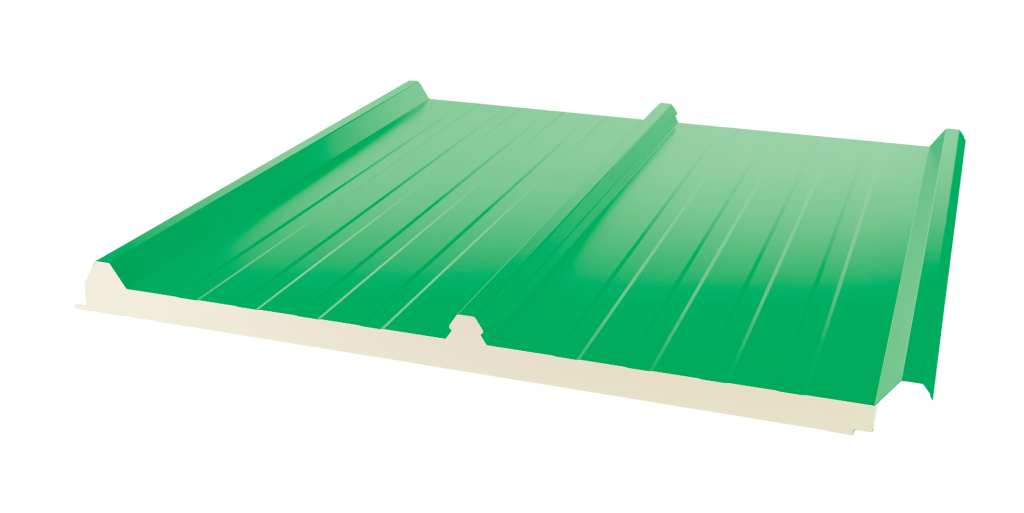

3 Rıbbed Roof Panel

3 RIBBED ROOF PANEL

PRODUCT DETAILS

Place of use	Roof
Useful Width	1000 mm
Minimum Length	2,4 m
Max Length	15 m
Polyurethane Density (EN 1602)	40 (±2) kg/m³
Polyurethane Thickness	30-40-50-60-80-100 mm
Inflammability Class (EN 1350)	B, s2, d0
Metal Type	Painted Galvanized or Aluminum
Standard Top Metal Thickness	0,30 / 0,40 / 0,50 mm
Standard Bottom Metal Thickness	0,30 / 0,40 / 0,50 mm

LOAD CARRYING TABLES (BGS) PAINTED GALVANIZED SHEET

BGS	BGS	LOVE DISTANCE
Top Metal Thickness (mm)	Bottom Metal Thickness (mm)	PUR (mm)	150 cm	175 cm	200 cm	225 cm	250 cm	275 cm	300 cm	325 cm	350 cm
0,50	0,40	40	164	125	105	86	71	59	49	38	33
0,50	0,40	50	232	164	139	116	96	79	66	54	50
0,50	0,40	60	281	211	176	148	123	107	87	68	64
0,50	0,40	80	399	307	243	211	171	145	122	98	89

LOAD CARRY TABLES ALUMINUM

BGS	BGS	LOVE DISTANCE
Top Metal Thickness (mm)	Bottom Metal Thickness (mm)	PUR-PIR (mm)	150 cm	175 cm	200 cm	225 cm	250 cm	275 cm	300 cm	325 cm	350 cm
0,50	0,40	40	253	191	161	142	117	107	88	75	68
0,50	0,40	50	320	253	209	189	154	134	116	99	88
0,50	0,40	60	362	350	259	229	185	169	145	125	113
0,50	0,40	80	493	420	334	307	254	224	195	157
