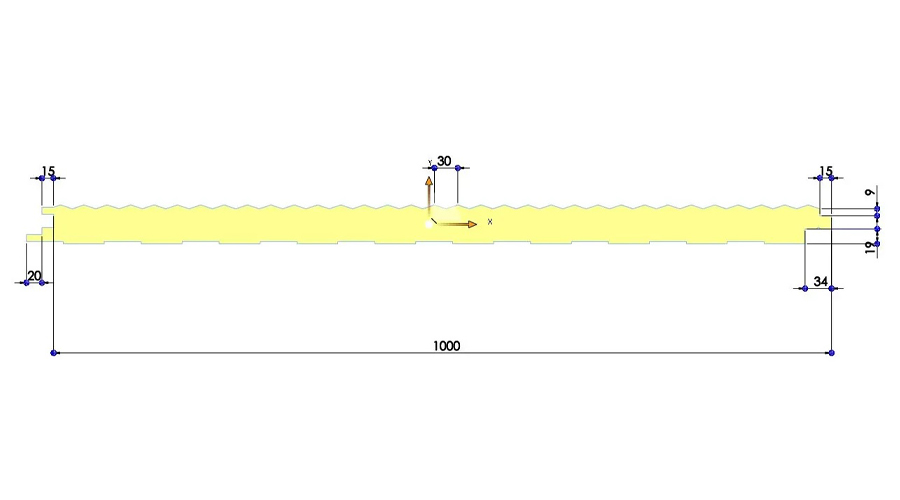

Micro Trace Facade Panel
  • Outer surface pattern, striped, micro and deep-marked options
  • Painted galvanized sheet or aluminum alternatives on interior and exterior surfaces
  • Production in different color options
  • External screwing feature
  • Both horizontal and vertical applicability
  • Inflammability class according to TS EN 13501-1, B-s2 for PUR insulated facade panels; d0, B-s1 for PIR insulated facade panels; d0
  • Production in desired length between 2 m and 12 m
  • Çizgili ve mikro desenli cephe panellerinde 40-50-60-70-75-80-100-120-150-180-200 mm, derin izli panellerde ise 40-50-60 mm kalınlık seçenekleri
  • According to TS EN 14509, the thermal conductivity coefficient U value is between 0.57 – 0.11 W/m2K in striped and micro-patterned and 0.57 – 0.37 W/m2K in deep-marked according to panel thickness.
